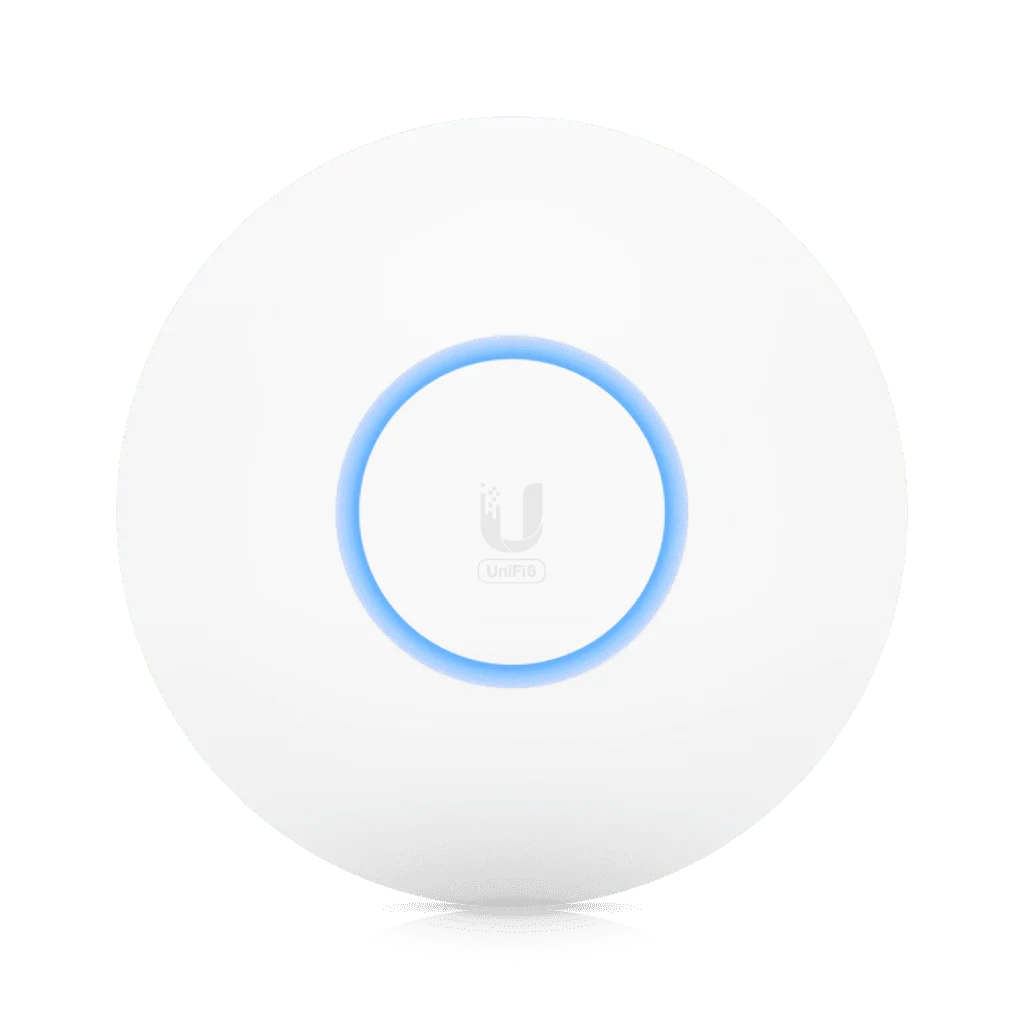

Ubiquiti UniFi WiFi 6 Lite Access Point (U6-Lite)

Ubiquiti UniFi WiFi 6 Lite Access Point (U6-Lite) is a compact, high-efficiency wireless solution designed to deliver next-generation WiFi 6 performance in home and small business environments. It supports dual-band connectivity with 2×2 MU-MIMO on both 2.4 GHz and 5 GHz, offering speeds up to 1.2 Gbps. Ideal for ceiling or wall mounting, the U6-Lite seamlessly integrates with the UniFi Network platform and supports features like VLAN, Advanced QoS, and Guest Traffic Isolation.

Product Features

Compact And Versatile Design
Low-profile enclosure supports wall or ceiling mount, perfect for discreet deployments in homes or offices.

High-Speed WiFi 6 Performance
Supports the latest 802.11ax (WiFi 6) standard with 300 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz, ensuring fast and efficient wireless access.

Dual-Band 2×2 MU-MIMO
Delivers improved performance and capacity with 2×2 MIMO on both bands, enhancing concurrent client handling.

PoE Powered For Easy Installation
Powered via PoE (48V) with a maximum consumption of 12W, simplifying deployment with a single cable for power and data.

Advanced Security And Traffic Control
Supports WPA3 encryption, per-user rate limiting, BSSID control, and VLAN tagging for secure and optimized networks.

Fully Managed With UniFi Controller
Easily monitor, configure, and scale using UniFi Network Controller (v5.14.3 or later) with real-time statistics and advanced settings.

Product Specifications

• Dimensions: Ø160 x 33 mm
• Weight (With Mount): 315 g
• Enclosure Material: Polycarbonate, Aluminum
• Networking Interface: (1) GbE RJ45 Port
• Power Method: Passive PoE, 48V
• Power Supply: 48V, 0.32A (PoE Adapter Not Included)
• Max. Power Consumption: 12W
• Transmit Power: 2.4 GHz: 23 dBm / 5 GHz: 23 dBm
• MIMO: 2×2 SU-MIMO (2.4 GHz), 2×2 MU-MIMO (5 GHz)
• Max Data Rates: 2.4 GHz: 300 Mbps / 5 GHz: 1.2 Gbps
• Antenna Gain: 2.4 GHz: 2.8 dBi / 5 GHz: 3 dBi
• Operating Temperature: -30 to 60°C
• Humidity: 5–95% Noncondensing
• WiFi Standards: 802.11a/b/g/n/ac/ax
• Security: WPA-PSK, WPA2, WPA3
• Concurrent Clients: 300+
• Mounting Options: Wall or Ceiling (hardware included)
