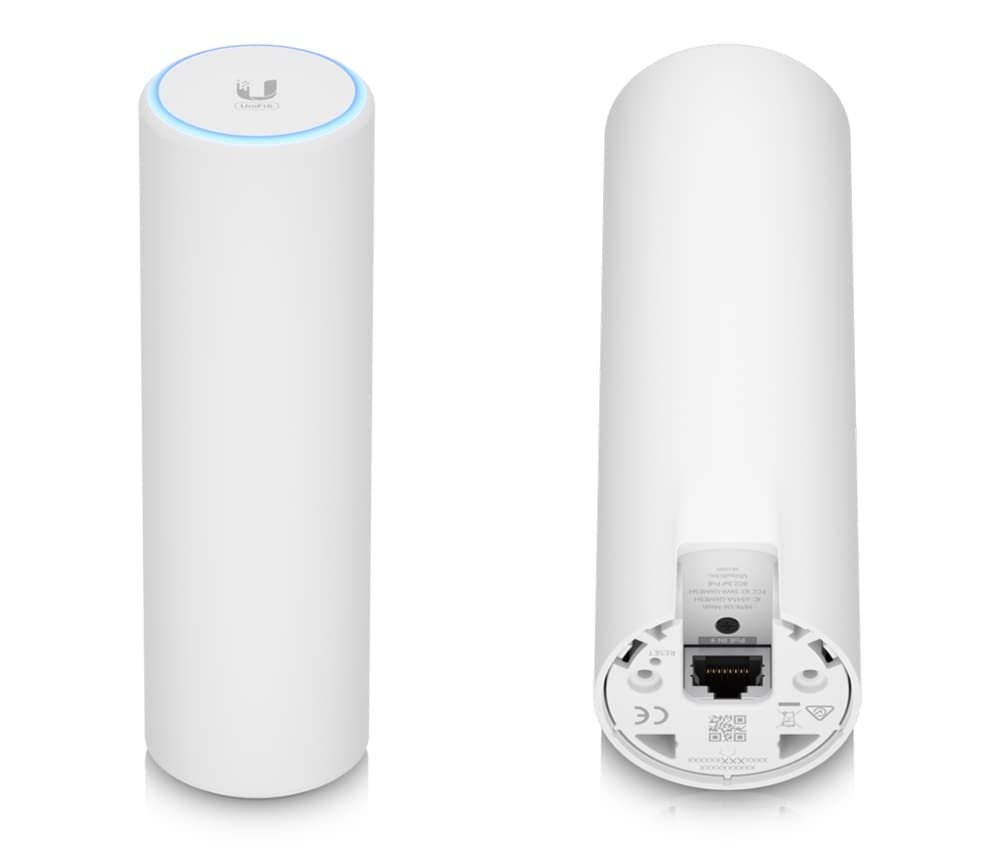

Ubiquiti UniFi AP WiFi 6 Mesh Access Point (U6-Mesh)
Ubiquiti UniFi U6-Mesh is a powerful WiFi 6 access point engineered to deliver high-performance wireless coverage in both indoor and outdoor environments. With dual-band speeds of up to 4.8 Gbps, support for over 300 concurrent clients, and IPX5-rated durability, it’s the perfect solution for scalable mesh deployments in homes, offices, campuses, and outdoor areas. Its sleek, compact design allows flexible mounting on walls, poles, or desktops, while seamless integration with the UniFi Network platform ensures centralized management and advanced security.
Key Features
WiFi 6 performance
Delivers up to 4.8 Gbps throughput using the latest 802.11ax standard for faster and more reliable wireless connectivity.
Dual-band 4×4 MU-MIMO
Supports simultaneous 2.4 GHz and 5 GHz operation with multi-user MIMO and OFDMA for optimal efficiency.
300+ concurrent clients
Ideal for high-density environments such as schools, malls, and enterprise campuses.
IPX5 weather resistance
Rugged housing ensures reliable outdoor use with protection from rain and dust.
Flexible mounting options
Mount to poles, walls, desktops, or ceilings (optional accessory) for versatile deployment.
Bluetooth management
Includes built-in Bluetooth for simplified setup and maintenance through the UniFi mobile app.
UniFi Network integration
Managed via the UniFi Controller for streamlined configuration, monitoring, and updates.
PoE support with power adapter included
Powered via 802.3af/at PoE or included 48V PoE adapter, eliminating additional cabling.
Specifications
- Dimensions: Ø48.5 x 159.5 mm
- Weight: 400 g
- Enclosure: Polycarbonate and aluminum
- Networking interface: (1) Gigabit Ethernet RJ45
- Management interface: Ethernet
- Power method: PoE (44–57V DC)
- Max power consumption: 13W
- Max TX power: 2.4 GHz – 22 dBm, 5 GHz – 26 dBm
- MIMO: 2×2 (2.4 GHz), 4×4 (5 GHz)
- Max data rate: 2.4 GHz – 573.5 Mbps, 5 GHz – 4.8 Gbps
- Antenna gain: 2.4 GHz – 3 dBi, 5 GHz – 5 dBi
- LED indicator: White/blue
- Button: Factory reset
- Mounting options: Wall, pole, desktop (included); ceiling (optional)
- Weatherproofing: IPX5
- Operating temperature: -30 to 60°C
- Operating humidity: 5% to 95% noncondensing
- Wireless standards: 802.11a/b/g/n/ac/ax
- Wireless security: WPA/WPA2/WPA3, WPA-Enterprise
- VLAN: 802.1Q
- Guest isolation: Supported
- QoS: Per-user rate limiting
- DFS support: Yes
- Bluetooth: Yes
- Concurrent clients: 300+
- UniFi Controller requirement: Version 6.2.51 or later
