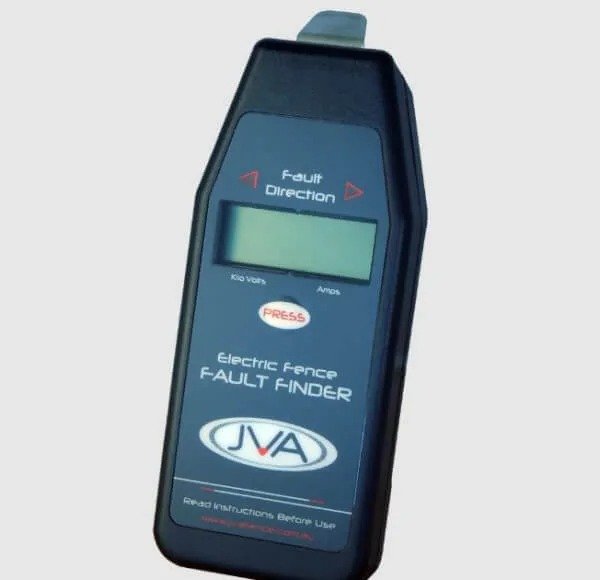

JVA Electric Fence Fault Finder

The JVA Electric Fence Fault Finder is a handheld directional testing tool designed to help locate faults on electric fences. It displays fence voltage and current on a digital screen and uses illuminated directional arrows to indicate the direction of a detected high-load fault. The device is designed for electric fence testing and uses a standard 9V battery, with a compact design for carrying during fence inspection and maintenance.

Product Features

Directional Fault Finding

The JVA Electric Fence Fault Finder uses illuminated directional arrows to indicate the direction of a detected high-load fault, helping the user follow the fence line towards the problem area.

Digital Voltage and Current Display

The built-in digital display provides readings for fence voltage and current, giving the user measurable information while checking the electric fence.

One-Touch Operation

The Fault Finder is designed for simple one-touch operation, allowing the user to take a fence reading without a complicated control procedure.

No Separate Earth Connection Required

The JVA Fault Finder is designed to measure fence voltage without requiring a separate earth connection. JVA states that the device uses the capacitance of the user’s hand for voltage measurement.

Automatic Pulse Polarity Recognition

The device can recognise the polarity of the electric fence pulse automatically, allowing it to operate with different electric fence energiser configurations.

Compact and Portable

The pocket-sized design makes the Fault Finder practical to carry when inspecting and maintaining electric fence installations.

Ergonomic Housing

The unit has an ergonomic case designed for handheld use, with the product design keeping the user’s fingers further away from the high-voltage measurement area.

Replaceable 9V Battery

The JVA Fault Finder uses a standard replaceable 9V battery. JVA also specifies a low-battery indication for the device.

Waterproof Design

The JVA Fault Finder has a waterproof design intended for use when checking electric fence installations in outdoor conditions.

Backlit Display

The digital display is backlit, making the readings easier to view while using the device.

Product Specifications

• Product type: Electric fence fault finder
• Brand: JVA
• Product code: PTE0129
• Function: Electric fence voltage, current and directional fault testing
• Voltage display range: 0 to 9.9 kV
• Voltage accuracy: +/-10%
• Current display range: 0 to 30 A
• Current accuracy: +/-10%
• Voltage display: 2-digit 10 mm LCD
• Current display: 2-digit 10 mm LCD
• Battery: Standard 9V battery
• Operation: One-touch
• Fault indication: Illuminated directional arrows
• Polarity recognition: Automatic pulse polarity recognition
• Earth connection: Not required for fence voltage measurement
• Housing: Waterproof design
• Dimensions: 155 x 60 x 24 mm
• Product weight: 0.153 kg
• Packed weight: 0.196 kg
• Application: Testing and locating faults on electric fences
