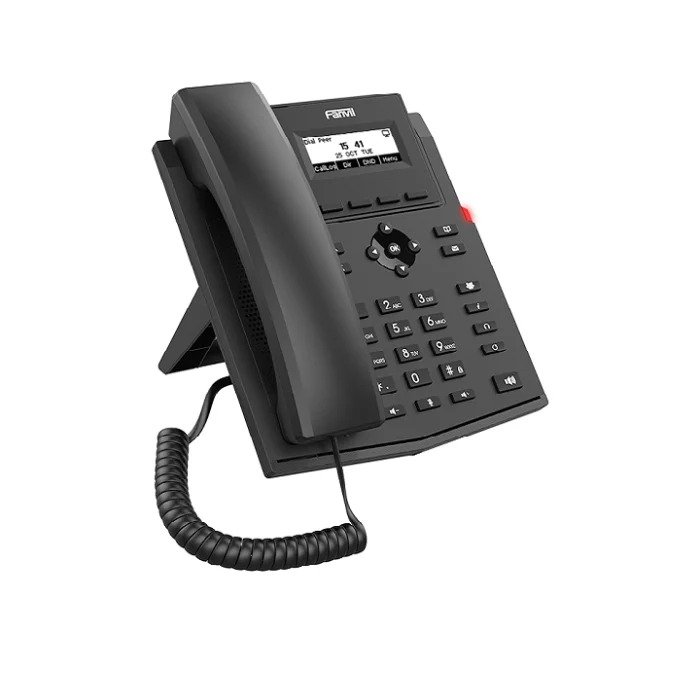

Fanvil X301P Entry-Level VoIP Phone

Fanvil X301P entry-level VoIP phone is a cost-effective IP communication solution tailored for small to medium-sized businesses in need of reliable and efficient voice communication. Equipped with a 2.3-inch dot-matrix display, HD audio, and dual 10/100 Mbps Ethernet ports with PoE, this IP phone combines simplicity with essential business-class features like multi-line support, audio conferencing, and advanced headset compatibility. Its robust network and security protocols ensure seamless integration into enterprise environments, while flexible mounting options make it ideal for a variety of office setups.

Product Features

Clear 2.3-inch dot-matrix display
The Fanvil X301P features a 2.3-inch 128×48 pixel LCD with backlight, providing easy readability for call information and navigation menus.

HD audio with Opus and G.722 codecs
Enjoy crystal-clear conversations with high-definition audio on both the handset and speakerphone, thanks to advanced codecs like G.722 and Opus.

Efficient call handling with 6-way conferencing
Supports 2 SIP accounts and features call transfer, hold, forwarding, and up to 6-way audio conferencing, optimizing communication for busy teams.

Integrated PoE and dual Ethernet ports
The device includes two 10/100 Mbps ports with built-in Power over Ethernet (PoE) for efficient network connection and power delivery through a single cable.

Headset compatibility with EHS support
Compatible with Jabra and Poly wireless headsets via Electronic Hook Switch (EHS) cables, enabling hands-free productivity.

Enterprise-grade security and network support
Includes advanced security protocols such as TLS, SRTP, and VPN support, with additional network features like VLAN, LLDP, and QoS for stable performance.

Product Specifications

• Display: 2.3″ 128 x 48 pixel dot-matrix LCD with backlight
• SIP Accounts: Supports up to 2 SIP lines
• Audio Codecs: G.711a/u, G.722, G.729A/B, Opus, iLBC, G.726, G.723.1
• Audio Features: Echo cancellation (AEC), automatic gain control (AGC), voice activity detection (VAD), comfort noise generation (CNG), background noise elimination (BNE), noise reduction (NR)
• Audio Conferencing: 6-way conference support
• Ethernet Ports: 2 × 10/100 Mbps RJ45, PoE-enabled
• Headset Support: RJ9 port with EHS support for Jabra and Poly
• Power Supply: IEEE 802.3af PoE or 5V/1A DC adapter (optional)
• Security: SRTP, TLS, HTTPS, 802.1x, VPN (L2TP/OpenVPN)
• Network Protocols: IPv4/IPv6, VLAN, LLDP, QoS
• Phonebook: 1000 entries (local/remote), 600 call logs
• Installation: Desktop stand included, wall-mountable (optional accessory)
