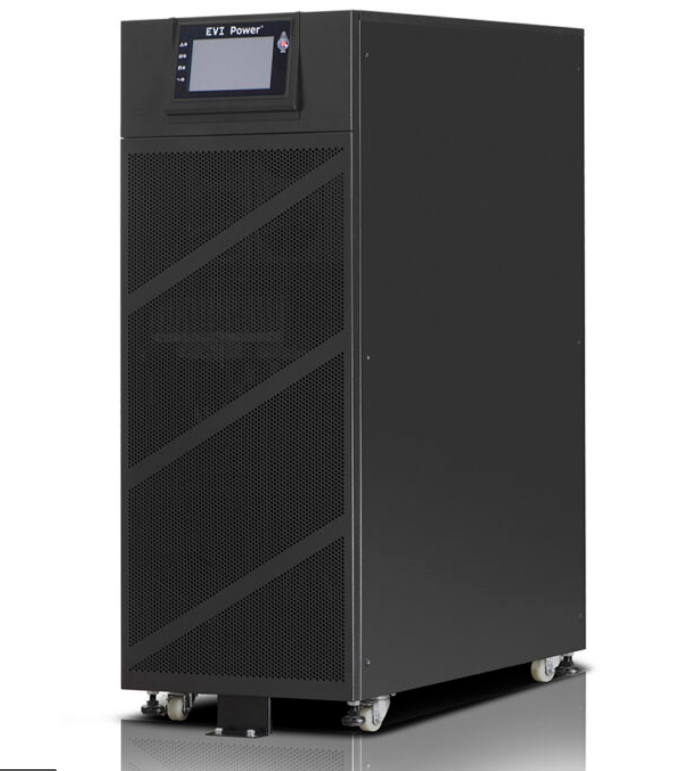

EVI 10000VA / 9000W Tower Online 3 Phase UPS (EP-UPS10000Y33OT)

The EVI 10000VA / 9000W Tower Online 3 Phase UPS delivers powerful and reliable protection for critical IT infrastructure, industrial systems, and enterprise applications. With advanced online double conversion technology and DSP control, it guarantees seamless power supply with zero transfer time, safeguarding sensitive equipment against power fluctuations and outages.

Product Features

3-Phase Input & Output with N+X Redundancy

Supports maximum of 4 units in parallel, ensuring high reliability and scalability for demanding power environments.

Online Double Conversion with DSP Technology

Provides stable, clean, and uninterrupted power output with 0ms transfer time for mission-critical systems.

High Efficiency & Power Factor

Equipped with PFC technology and a 0.9 power factor for optimal energy utilization with reduced input current harmonic distortion (<3%).

Wide Input & Frequency Range

Operates under a wide voltage range of 208–478 VAC and frequency range of 40–70 Hz, making it highly adaptable to unstable power grids.

Intelligent Charging & Battery Management

Features inbuilt batteries with optional external battery packs for extended runtime, plus intelligent charging technology to extend battery life.

Advanced Controls & Monitoring

Includes USB, RS232, RS485, parallel port, and dry contact communication ports, with optional SNMP and relay cards for remote monitoring.

Safety & Protection Functions

Comes with Emergency Power Off (EPO), DC start capability, and full digital control for charger, rectifier, and inverter functions.

User-Friendly Interface

Equipped with a 7” Touch LCD Display for real-time monitoring and control, plus terminal ports for flexible input/output connections.

Product Specifications

• Model: EP-UPS10000Y33OT
• Capacity: 10000VA / 9000W
• Topology: Online Double Conversion with DSP Control
• Phases: 3-Phase Input & Output
• Output Transfer Time: 0 ms
• Parallel Redundancy: N+X (up to 4 units)
• Power Factor: 0.9 PF
• Input Harmonic Distortion: <3%
• Input Voltage Range: 208 – 478 VAC
• Input Frequency Range: 40 – 70 Hz
• Communication Ports: USB, RS232, RS485, parallel port, dry contact
• Optional: SNMP card, relay card, external battery pack
• Display: 7” Touch LCD Display
• Functions: ECO mode, intelligent charging, DC start, EPO
• Form Factor: Tower
• Warranty: 2 Years (1 Year on battery)
